In your code you may need to run a ScriptUI component’s callback, or simulate a user interaction, maybe as a part of a subroutine. There are few ways to do this, with slight differences in the behavior: directly, using Javascript methods call(), notify() or dispatchEvent() – I’ve set up a commented demo Dialog that shows them all.

The Dialog

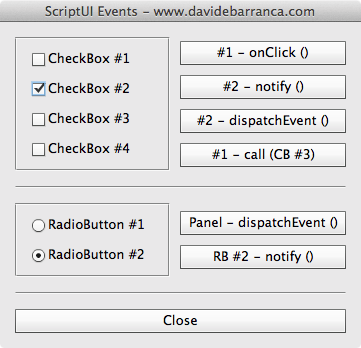

I’ve used a resource string to build the initial dialog (please scroll down to the post’s end to find the example completed with listeners, callbacks and button functions):

var windowRef = "dialog { \
	text: 'ScriptUI Events - www.davidebarranca.com', \
	orientation: 'column', \
	alignChildren: 'fill', \
	cbGroup: Group { \
		cbPanel: Panel { \
        preferredSize: ['155',''], \
			alignChildren: 'left', \
			cb1: Checkbox { text: 'CheckBox #1'}, \
			cb2: Checkbox { text: 'CheckBox #2'}, \
			cb3: Checkbox { text: 'CheckBox #3'}, \
			cb4: Checkbox { text: 'CheckBox #4'}, \
		}, \
		btGroup: Group { \
             preferredSize: ['170',''], \
			alignChildren: ['fill','center'], \
			orientation: 'column', \
			testCb1: Button { text: '#1 - onClick ()' }, \
			testCb2: Button { text: '#2 - notify ()' }, \
			testCb3: Button { text: '#2 - dispatchEvent ()' }, \
			testCb4: Button { text: '#1 - call (CB #3)' }, \
		}, \
	}, \
    spacer: Panel { size: [100,0]}, \
	rbGroup: Group { \
		rbPanel: Panel { \
        preferredSize: ['155',''], \
        alignChildren: 'left', \
			rb1: RadioButton { text: 'RadioButton #1', value: 'true'}, \
			rb2: RadioButton { text: 'RadioButton #2'}, \
		}, \
        btGroup: Group { \
             preferredSize: ['170',''], \
			alignChildren: ['fill','center'], \
			orientation: 'column', \
			testRb1: Button { text: 'Panel - dispatchEvent ()' }, \
			testRb2: Button { text: 'RB #2 - notify ()' }, \
		}, \
	}, \
    spacer: Panel { size: [100,0]}, \
    closeBtn: Button { text: 'Close' }\
}";

// Build the Window
var w = new Window(windowRef);
w.closeBtn.onClick = function() { w.close() };
w.show();

Regular Listeners and Callbacks

Let’s code for the CheckBoxes a response to the 'click' event in two different ways:

// Shortcuts for cb
var cb1 = w.cbGroup.cbPanel.cb1;
var cb2 = w.cbGroup.cbPanel.cb2;
var cb3 = w.cbGroup.cbPanel.cb3;

// CheckBox #1 onClick listener: no event is passed.
cb1.onClick = function(event) {
	alert("Clicked checkbox: " + this.text + "\nValue: " + this.value);
	// uncomment the following alert to test that no event is passed:
	// alert("Using event.target.value: " + event.target.value); // Error: event is undefined
};

// CheckBox #2 'click' listener: an event is passed,
// and the alert correctly shows the event.target.value
cb2.addEventListener('click', function(event) {
	alert("Clicked checkbox: " + this.text + "\nValue: " + event.target.value);
});

The first CheckBox registers an onClick event: mind you, there’s no Event actually passed to the callback. If you uncomment the second alert, you see that event.target.value is undefined.

The second CheckBox uses addEventListener, listening for the 'click' event with an anonymous callback. Here, an actual Event is passed.

For the RadioButtons, I’ve set up a callback triggered by clicks on the container (i.e. the Panel) level:

// Shortcut for the RB panel
var rbPanel = w.rbGroup.rbPanel;

// RadioButton 'click' listener
// alerts the active RB text (works differently on PS and ESTK)
rbPanel.addEventListener('click', function(event) {
    for (var i = 0; i < rbPanel.children.length; i++) {
        if (rbPanel.children[i].value == true) {
            alert("Active: " + rbPanel.children[i].text);
            return;
         }
     }
});

The loop finds the selected RadioButton and alerts its name: mind you, this works differently on Photoshop and ESTK because of the way they deal with event propagation.

Photoshop gets the 'click' on the Panel, lets it go through it, down to the RadioButton, then fires the callback – which evaluates the RadioButtons status and returns the name of the selected one: that is, the one you’ve clicked.
ESTK gets the 'click' on the Panel and immediately fires the callback, before allowing the 'click' to reach the RadioButton: this way the alerted name isn’t the one of RadioButton you’ve clicked on, but the one that was selected before. When the callback is done, the 'click' is allowed to propagate to the RadioButton, that is finally selected.

Simulated events: CheckBox

This is the code for the four checkbox’s buttons, which duty is to trigger the callbacks and sometimes simulate user interaction:

// Button: test the CB#1 callback via direct cb1.onClick() call.
// Result: the callback's alert shows, but the checkbox isn't toggled
w.cbGroup.btGroup.testCb1.onClick = function() { cb1.onClick() };

// Button: test the CB#1 callback via cb1.notify() call.
// Result: the callback's alert shows, and the checkbox is toggled
w.cbGroup.btGroup.testCb2.onClick = function() { cb2.notify('onClick') };
//w.cbGroup.btGroup.testCb2.onClick = function() { cb1.notify("onClick") }; // works as well

// Button: test the CB#2 callback via dispatchEvent() call.
// Result: the callback's alert shows, but the checkbox isn't toggled
w.cbGroup.btGroup.testCb3.onClick = function() { cb2.dispatchEvent(new UIEvent ('click')) };

// Button: uses the onClick.call() method of CB#1 passing the CB#2 as parameter
// Result: the CB#2 'borrows' the callback from the CB#1
// (i.e. the CB#2 becomes the callback's 'this')
w.cbGroup.btGroup.testCb4.onClick = function() { cb1.onClick.call(cb3) };

The first button directly calls the CheckBox #1 callback via cb1.onClick(). Mind you, onClick() is a regular method of the cb1 component, so it can be called anytime like any other method of any other object. The callback is fired but the CheckBox is not toggled.

Conversely, the second button uses .notify() to simulate the user interaction, as if the CheckBox #1 was actually clicked. As a result, its value (checked/unchecked, i.e. true/false) is toggled and the callback is fired. Mind you, the notify() parameter in this case is optional – not in other cases when you might want to simulate, say, a Window.notify('onMove') event.

The third button acts on CheckBox #2, which registers the listener and the callback via .addEventListener(). To trigger its callback (since .onClick() doesn’t exist) you’ve to make the component dispatch a new Event via .dispatchEvent(): as a result the callback is fired but the CheckBox is not toggled. If you want to simulate user interaction, you can always rely on .notify().

The fourth button uses .call() to borrow from the CheckBox #1 the callback, and temporarily apply it to the CheckBox #3 (that hasn’t any .onClick() method). The .call() parameter cb3 is used as a “this” reference: so when the function needs to evaluate this.value, it doesn’t refer anymore to cb1 (the actual “owner” of the callback) but to cb3.
As a result the alert is fired but the CheckBox isn’t toggled.

Simulated events: RadioButton

Things are similar when it comes to the RadioButtons:

// Button: test the RadioButton Panel via dispatchEvent()
// Result: triggers the Panel's callback and fires the alert
w.rbGroup.btGroup.testRb1.onClick = function() { rbPanel.dispatchEvent(new UIEvent ('click')) };

// Button: test the RadioButton #2 via notify()
// Result: selects the second RadioButton and fires the Panel's callback
w.rbGroup.btGroup.testRb2.onClick = function() { w.rbGroup.rbPanel.rb2.notify('onClick') };

The first button uses .dispatchEvent() on the container level (i.e. it’s the Panel that fires the UIEvent), so that the callback is triggered and the alert shown.

The second button instead uses .notify() directly on the RadioButton simulating a user click. As a result, the RadioButton #2 is selected and the callback is fired (at least it is fired in Photoshop: ESTK ignores the callback for some reason).
Mind you, .addEventListener() and dispatchEvent() uses 'click' as the Event, while what you notify() is an 'onClick'.

Conclusion and full script

Hopefully this has shed some light on the different possibilities you’ve to run or trigger callbacks and simulate user interaction with ScriptUI components. This appears to be a field where the ExtendScript implementation differs a lot among the host apps (ESTK, Photoshop, InDesign, etc…). I’ve tried out the above on ESTK and PS only, so please test your portings!

ScriptUI Events

// Davide Barranca - www.davidebarranca.com
// V1.0 - 2014.08.04

var windowRef = "dialog { \
    text: 'ScriptUI Events - www.davidebarranca.com', \
	orientation: 'column', \
	alignChildren: 'fill', \
	cbGroup: Group { \
		cbPanel: Panel { \
        preferredSize: ['155',''], \
			alignChildren: 'left', \
			cb1: Checkbox { text: 'CheckBox #1'}, \
			cb2: Checkbox { text: 'CheckBox #2'}, \
			cb3: Checkbox { text: 'CheckBox #3'}, \
			cb4: Checkbox { text: 'CheckBox #4'}, \
		}, \
		btGroup: Group { \
             preferredSize: ['170',''], \
			alignChildren: ['fill','center'], \
			orientation: 'column', \
			testCb1: Button { text: '#1 - onClick ()' }, \
			testCb2: Button { text: '#2 - notify ()' }, \
			testCb3: Button { text: '#2 - dispatchEvent ()' }, \
			testCb4: Button { text: '#1 - call (CB #3)' }, \
		}, \
	}, \
    spacer: Panel { size: [100,0]}, \
	rbGroup: Group { \
		rbPanel: Panel { \
        preferredSize: ['155',''], \
        alignChildren: 'left', \
			rb1: RadioButton { text: 'RadioButton #1', value: 'true'}, \
			rb2: RadioButton { text: 'RadioButton #2'}, \
		}, \
        btGroup: Group { \
             preferredSize: ['170',''], \
			alignChildren: ['fill','center'], \
			orientation: 'column', \
			testRb1: Button { text: 'Panel - dispatchEvent ()' }, \
			testRb2: Button { text: 'RB #2 - notify ()' }, \
		}, \
	}, \
    spacer: Panel { size: [100,0]}, \
    closeBtn: Button { text: 'Close' }\
}";

// Build the Window
var w = new Window(windowRef);

/* =======================================
   CheckBox listeners and callbacks
   ======================================= */

// Shortcuts for cb
var cb1 = w.cbGroup.cbPanel.cb1;
var cb2 = w.cbGroup.cbPanel.cb2;
var cb3 = w.cbGroup.cbPanel.cb3;

// CheckBox #1 onClick listener: no event is passed.
cb1.onClick = function(event) {
	alert("Clicked checkbox: " + this.text + "\nValue: " + this.value);
	// uncomment the following alert to test that no event is passed:
	// alert("Using event.target.value: " + event.target.value); // Error: event is undefined
};

// CheckBox #2 'click' listener: an event is passed,
// and the alert correctly shows the event.target.value
cb2.addEventListener('click', function(event) {
	alert("Clicked checkbox: " + this.text + "\nValue: " + event.target.value);
});

// Button: test the CB#1 callback via direct cb1.onClick() call.
// Result: the callback's alert shows, but the checkbox isn't toggled
w.cbGroup.btGroup.testCb1.onClick = function() { cb1.onClick() };

// Button: test the CB#1 callback via cb1.notify() call.
// Result: the callback's alert shows, and the checkbox is toggled
w.cbGroup.btGroup.testCb2.onClick = function() { cb2.notify('onClick') };
//w.cbGroup.btGroup.testCb2.onClick = function() { cb1.notify("onClick") }; // works as well

// Button: test the CB#2 callback via dispatchEvent() call.
// Result: the callback's alert shows, but the checkbox isn't toggled
w.cbGroup.btGroup.testCb3.onClick = function() { cb2.dispatchEvent(new UIEvent ('click')) };

// Button: uses the onClick.call() method of CB#1 passing the CB#2 as parameter
// Result: the CB#2 'borrows' the callback from the CB#1
// (i.e. the CB#2 becomes the callback's 'this')
w.cbGroup.btGroup.testCb4.onClick = function() { cb1.onClick.call(cb3) };

/* =======================================
   RadioButton listeners and callback
   ======================================= */

// Shortcut for the RB panel
var rbPanel = w.rbGroup.rbPanel;

// RadioButton 'click' listener
// alerts the active RB text (works differently on PS and ESTK)
rbPanel.addEventListener('click', function(event) {
    for (var i = 0; i < rbPanel.children.length; i++) {
        if (rbPanel.children[i].value == true) {
            alert("Active: " + rbPanel.children[i].text);
            return;
         }
     }
});

// Button: test the RadioButton Panel via dispatchEvent()
// Result: triggers the Panel's callback and fires the alert
w.rbGroup.btGroup.testRb1.onClick = function() { rbPanel.dispatchEvent(new UIEvent ('click')) };

// Button: test the RadioButton #2 via notify()
// Result: selects the second RadioButton and fires the Panel's callback
w.rbGroup.btGroup.testRb2.onClick = function() { w.rbGroup.rbPanel.rb2.notify() };

/* Close Button */
w.closeBtn.onClick = function() { w.close() };

w.show();
